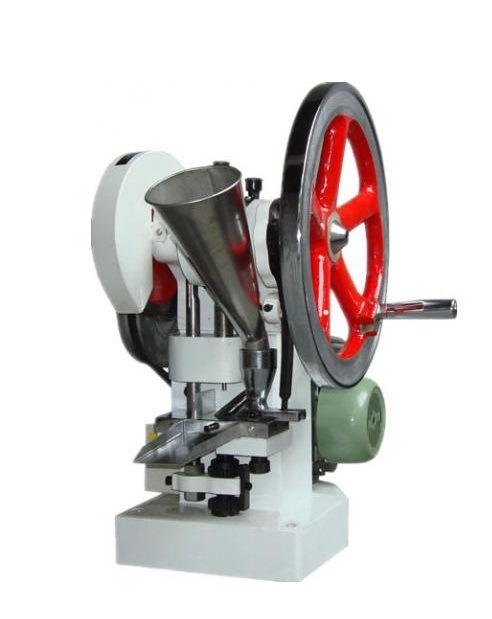

Hand use small tablet press
small manual use single punch tablet press
mechnical tablet press
hand small tablet press machine
Specifications
1.Presses both Round and Irregular Tablets ,
2.All touching part is made of Stainless Steel. 304
3.Customized molds are accept
Introduction
The machine is suitable for the industries of Chemical, Foodstuff,Electronic and etc.It is used of pressing medicinal tablets,catalysts,sugar tablets,Calcium tablets,Coffee tablets,Powder Metallurgical,Electronic elements and various tablets of pesticide and fertilizer.etc.in such small-batch production,laboratory and hospital fields.Meanwhile,that machine also can press various abnormity and normal tablet,and press the tablets in two sides with printing as well.
Main Technical Parameter
Model: | TDP-1.5 | TDP-5 | TDP-6 |
Max.Main Pressure (kn) | 15 | 50 | 60 |
Max.Pressure Diameter(mm) | 12 | 20 | 25 |
Max.Filling Depth(mm) | 12 | 16 | 18 |
Max.Tablet Thickness(mm) | 6 | 6 | 7.5 |
Max. Production capacity (p/h) | 4500 | 4000 | 3000 |
Motor (KW) | 0.55 | 0.75 | 1.1 |
Outside size(mm) | 570*380*630 | 700*380*695 | 700*380*695 |
Weight (kg) | 70 | 140 | 165 |
