small hand tablet press
small manual tableting machine
hand use tablet press machine
small manual tablet press equipment
Product Description
Main Technical Parameter:
Model: |
TDP-1.5 |
TDP-5 |
TDP-6 |
Max.Main Pressure (kn) |
15 |
50 |
60 |
Max.Pressure Diameter(mm) |
12 |
20 |
25 |
Max.Filling Depth(mm) |
12 |
16 |
18 |
Max.Tablet Thickness(mm) |
6 |
6 |
7.5 |
Max. Production capacity (p/h) |
4500 |
4000 |
3000 |
Motor (KW) |
0.55 |
0.75 |
1.1 |
Outside size(mm) |
570*380*630 |
700*380*695 |
700*380*695 |
Weight (kg) |
70 |
140 |
165 |

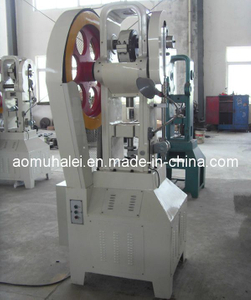

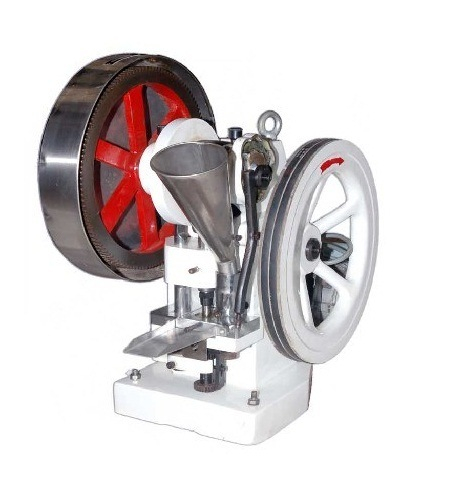

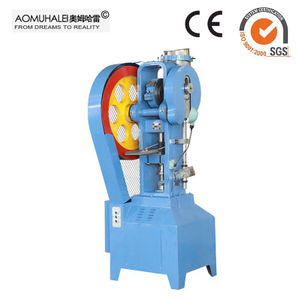

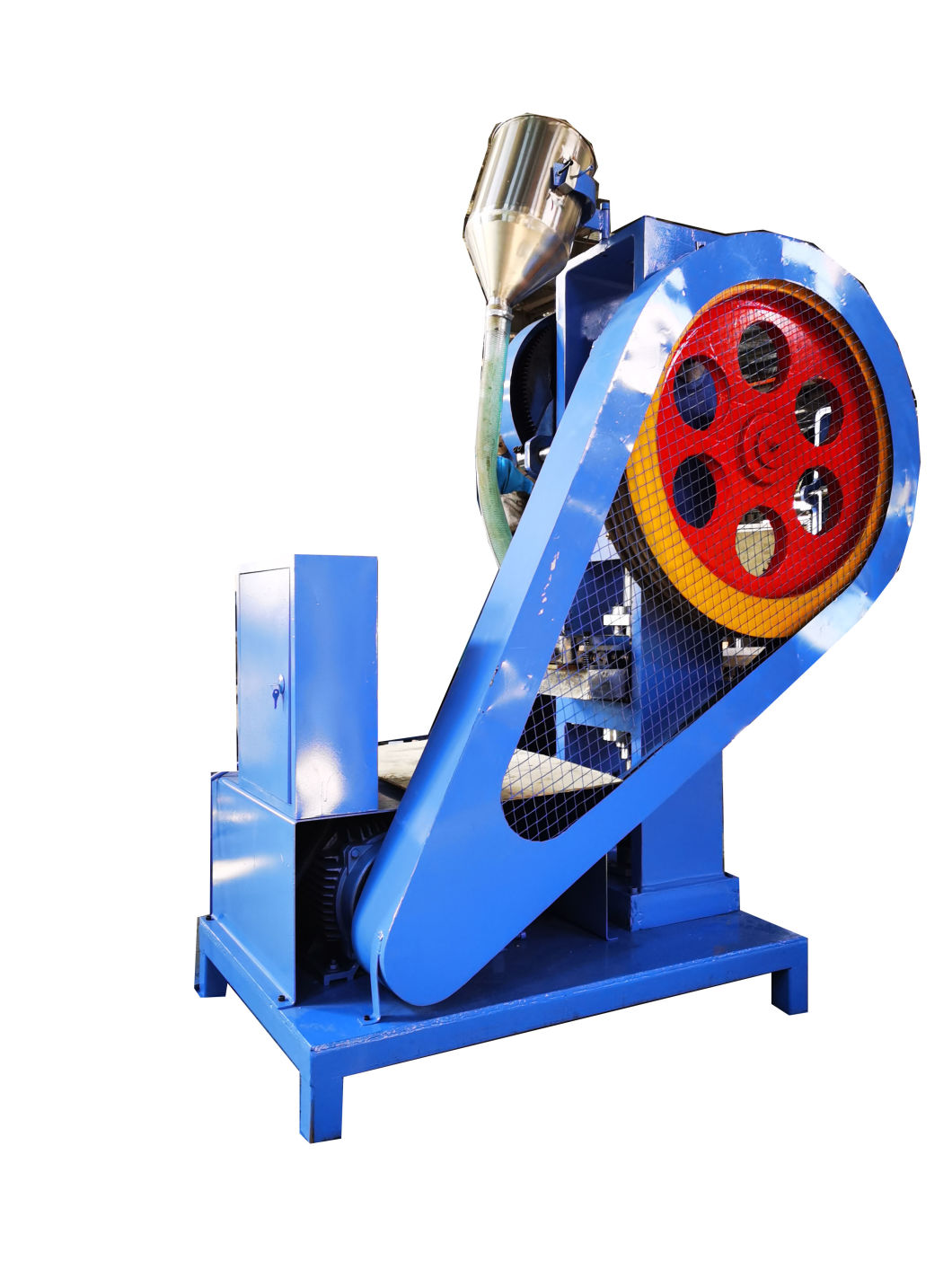

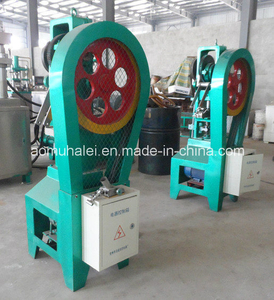

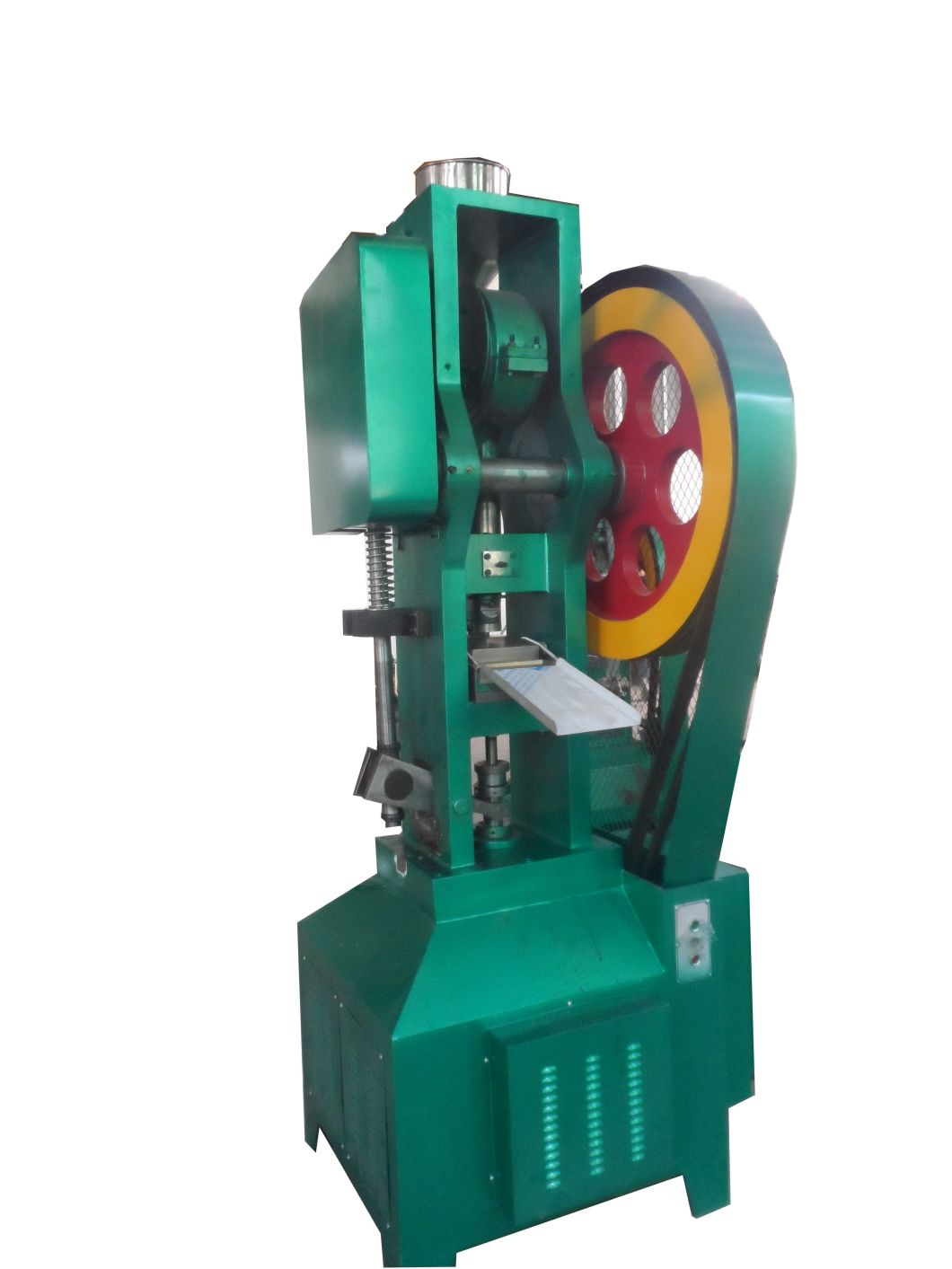

Detailed Photos
Features
Able to make powder and granular material compressed into a circular shaped tablet
Can be widely used in pharmaceutical,chemical plants,hospitals and scientific research units
Larger Diameter Tablets up to 18mm
Adaptable,easy to use,easy maintenance,small size,light weight
It will run for hours continuously producing identical tablets time after time
Friendly Support and Prompt Services
No special forms to fill out
Up to 3800 tablets per hour can be achieved,using a maximum presser of 50KN
A powerful electric motor and can also be hand operated Application

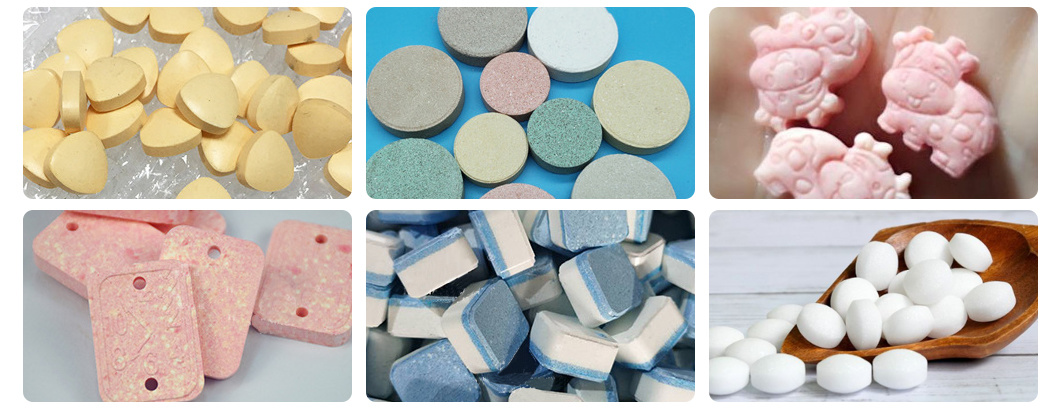

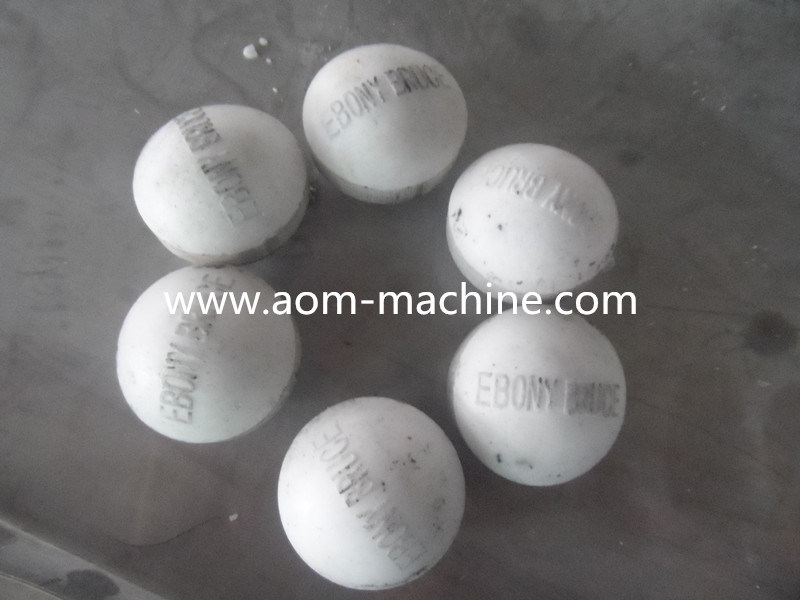

The machine is suitable for the industries of Chemical, Foodstuff,Electronic and etc.It is used of pressing medicinal tablets,catalysts,sugar tablets,Calcium tablets,Coffee tablets,Powder Metallurgical,Electronic elements and various tablets of pesticide and fertilizer.etc.in such small-batch production,laboratory and hospital fields.Meanwhile,that machine also can press various abnormity and normal tablet,and press the tablets in two sides with printing as well.
How to Use
1.Before connected to electrical power,the motor should be connected to ground to ensure safety.First demolition the V-belt,connected to electrical power,starting the motor,observe motor rotation direction whether correct(Motor shaft rotation direction should be with the protective cover or hand-wheel in the opposite direction of the arrow).If the rotation in the wrong direction,another separate cable connection.Then make V-belt installed.
2.Unloading punch dies and adjustment of tablet press. a,Installation punch dies.b,Putting out the adjustment. c,The adjustment of filling the depth(tablet weight adjusted). d,Pressure adjustment. e,die demolition Company Profile

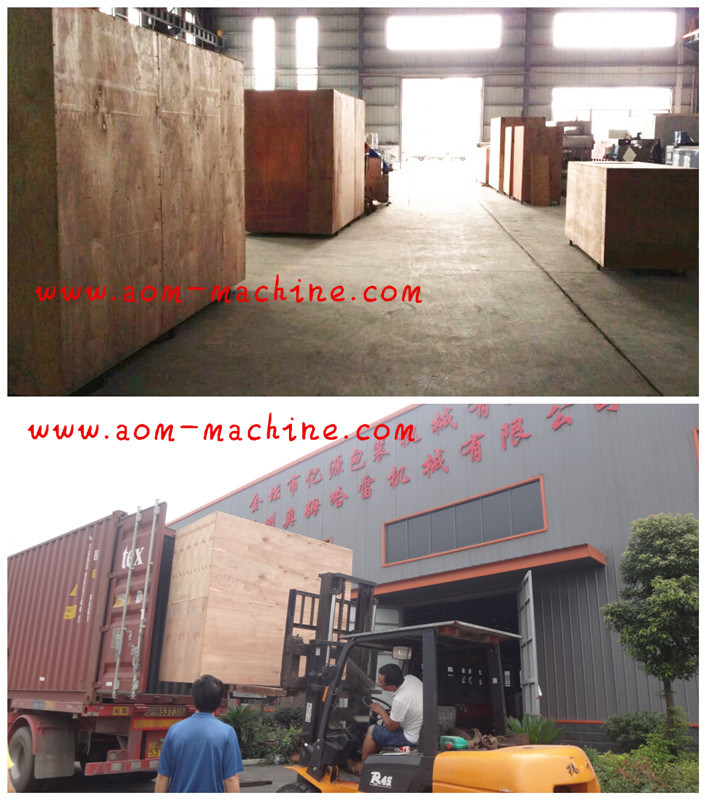

Packaging & Shipping
