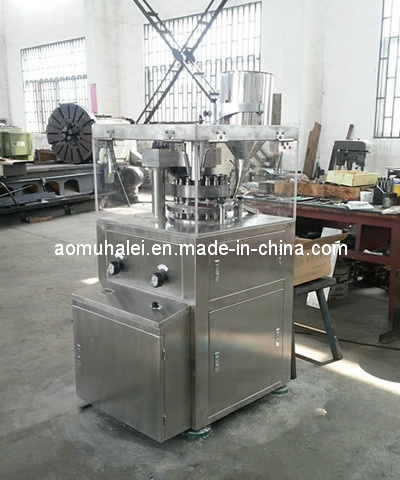

VFP17 rotary tablet press
Introduction:

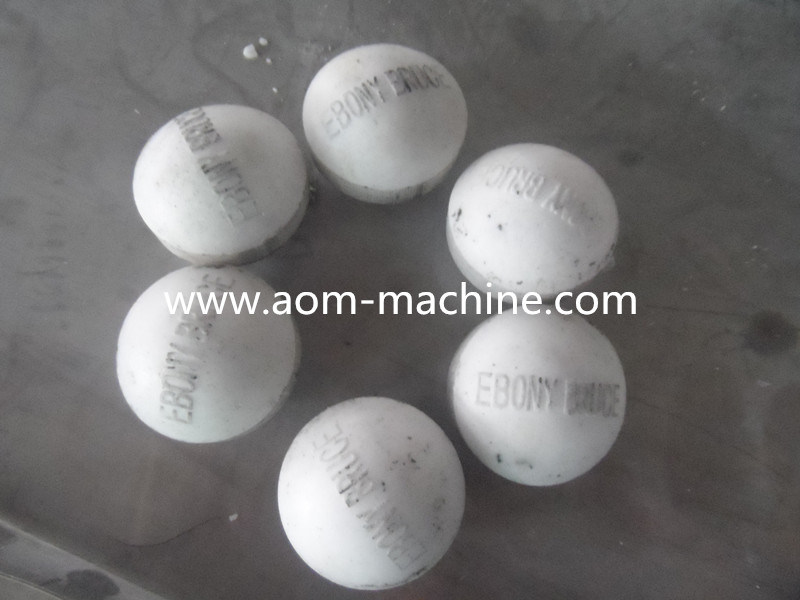

VFP17 rotary tablet press machine can press any granular material into round or nun-round tablets, such as vitamin tablet, sweet tablets, salt blocks, and the components of electronics and so on. VFP17 rotary tablet press is widely used in food production, human health, chemistry, electronics and other industries.
Its outside is made of stainless steel and its pressing room uses a new fully enclosed structure of plexiglass. It is bright and perspective, of good appearance and low noise, which is easy to operate and maintenance.
Characters:
*Medium batch production
*Tablets up to 25mm diameter
*Maximum output of 20, 000 tablets per hour
*upper punch guards with transparent window
*Pressing tablet Room 360 ° With transparent windows of plexiglass. No dead structure, easy to observe and clean.
*Easy to clean and minimum maintenance
*Ensures hygienic production condition and operator safety
*Feeder drive system located outside at the tablet pressing zone
*Easy accessibility for quick cleaning and product changeover
*outside is made of stainless steel.
Following is the specification of VFP17 tablet press machine for your reference.
| Model | VFP17 |
| Dies | 17sets |
| Max Pressure | 80Kn |
| Max Dia of Tablet | 15-25mm |
| Max Depth of Fill | 15-28mm |
| Max Thickness of Tablet | 5-14mm |
| Turret Speed | 1-18r/min |
| Production Capacity | D<20mm:30000-40000 pcs/h
25mm≥D>20mm:18000-20000pcs/h |
| Motor | 3.0kw 1430r/min |
| Frequency Inverter | 3.7kw |
| Net Weight | 850kg |
| Overall Size | 860*680*600 mm |
