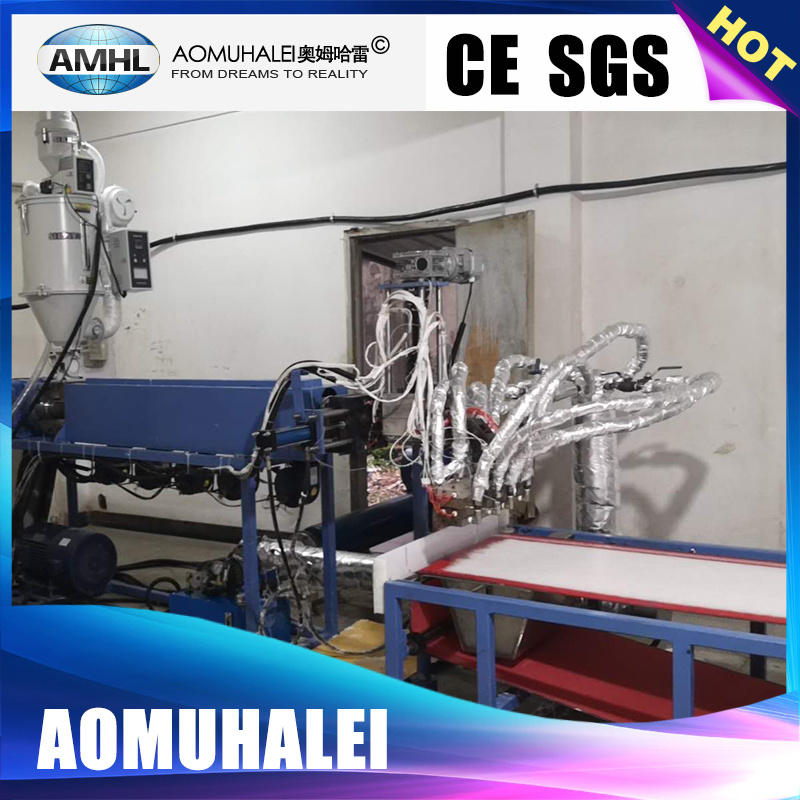

Automatic Non-Woven Melt-Blown Fabric Machine Extrusion Machine PP Fabric Making Machine for Medical Mask Nonwoven Fabric

Application:
Nonwoven Surgical Gown
Automatic Grade:
Automatic
Certification:
CE
Condition:
New
Material:
Made in Stainless Steel
Delivery:
in Usual 30 Working Days

Availability:



Inquire Add to Basket

Product Description

PRODUCTION PRINCIPLE OF MELTBLOWN CLOTH:

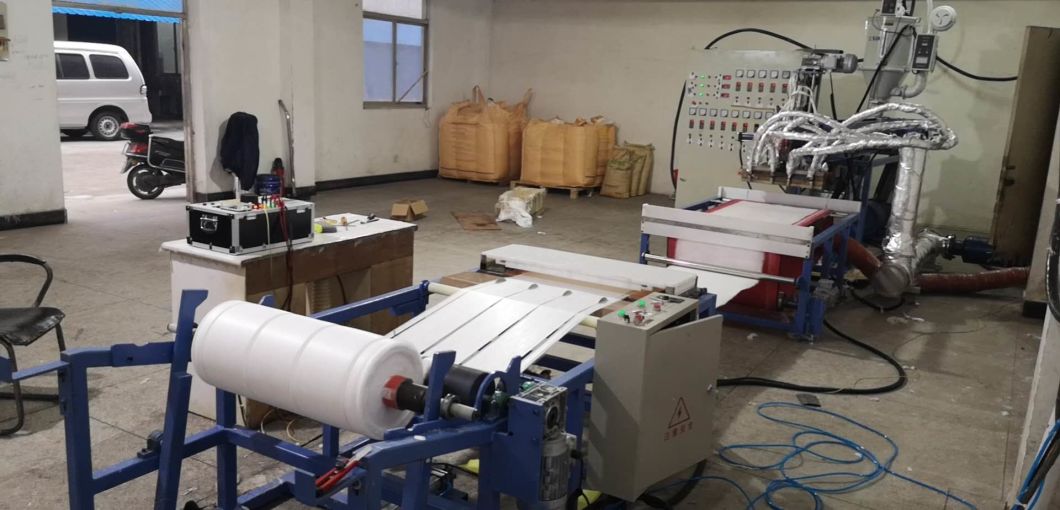

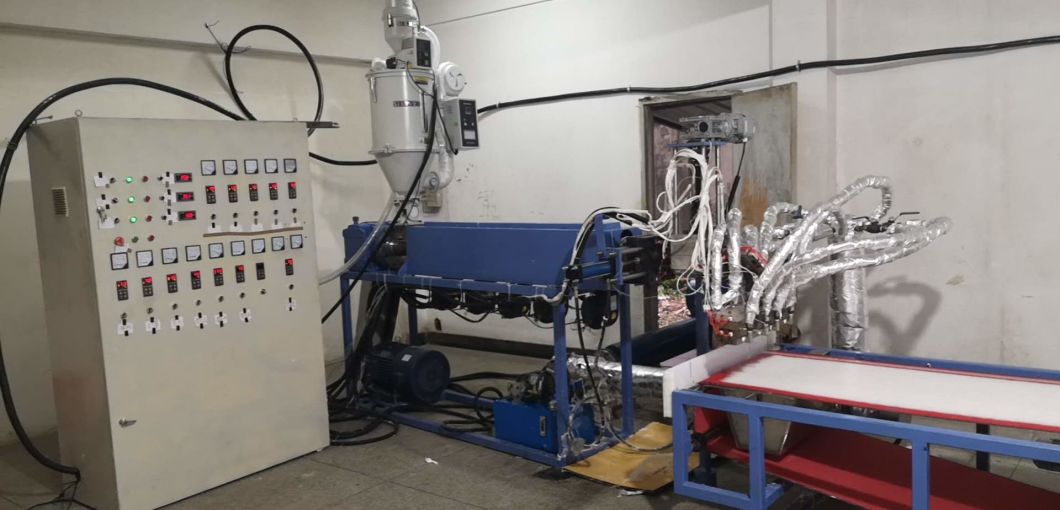

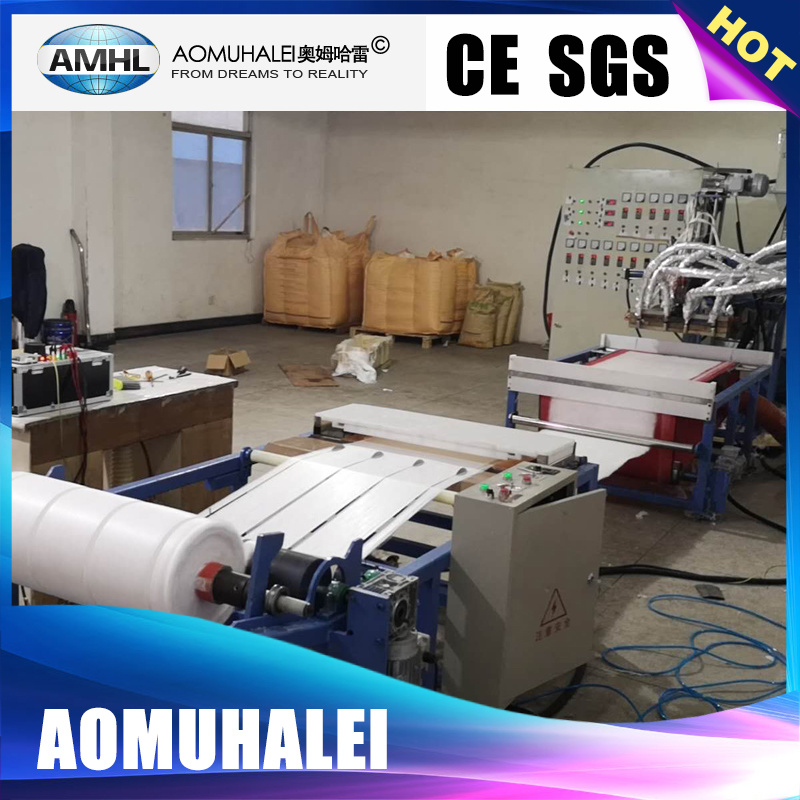

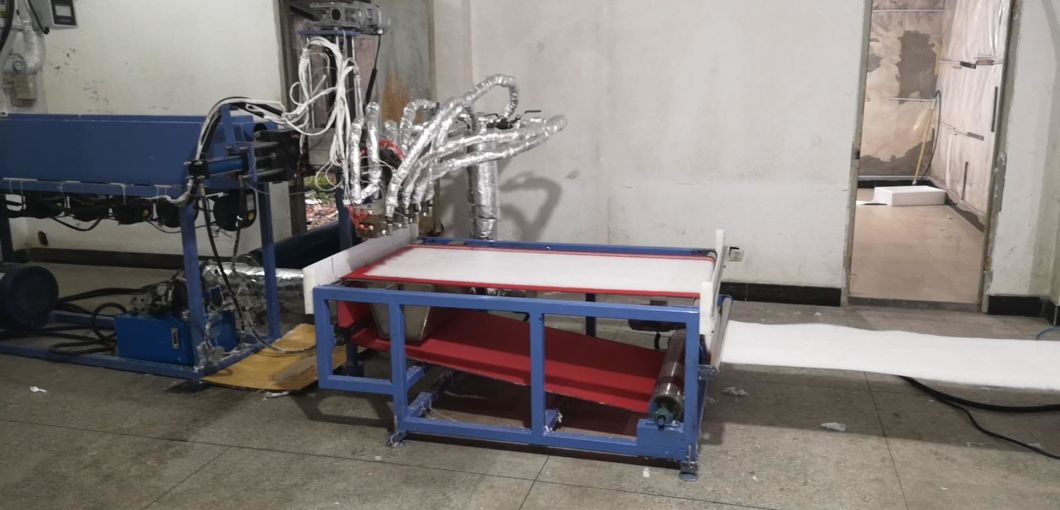

Hot Air injection is used to extrude the hot polypropylene from the holes of the Spinneret nozzle to make it extend in the form of fiber, and then gather on the conveyor belt to form the fiber web according to its self-fusion. The spinnerets are lined with tiny nozzles, and the flow of molten polypropylene from the nozzles extends through the high-speed Air Stream and concentrates on the moving conveyor belt to obtain a melt-blown cloth.

The melt blown cloth mainly uses polypropylene as the main raw material, the fiber diameter can reach 1 ~ 5 microns. These microfibers with unique capillary structure increase the number and surface area of fibers per unit area, thus, the melt blown cloth has good filterability, shielding property, heat insulation and oil absorption. It can be used in the fields of air, liquid filter material, isolation material, absorbing material, mask material, heat preservation material, oil absorption material and wiping cloth etc. .

Serial number	Name of accessories	Model Number	Power	Unit capacity
1	CAST aluminum heating ring	Inner diameter 120 * Height 350	380V,2.0KW	10 tablets
2	Coil Cooling Fan		180W	Five
3	FREQUENCY CONVERTER	65	18.5KW	1
4	FREQUENCY CONVERTER	Roots Blower	22KW	1
5	FREQUENCY CONVERTER	Roll-up curtain	0.75KW	2
6	Motor	65	18.5KW-4P	1
7	Motor	Metering pump decelerates 1:50 motor	0.75KW	1
8	Motor	Blade Motor speed ratio: 3	90 Watts	1
9	Motor	Winding Motor	0.75KW-4P	2
10	Motor	Cord Motor	0.75KW-4P
11	Unpowered drum	Outside diameter 50		6
12	Air Blower	2,000 cubic hours	4KW	1
13	Bending roll	Outer Diameter 100		1
14	Expansion shaft		75 MM (3 inches)	2
15	Cutting knife		Inside 40, outside 150	4
16	Air Heater	22KW+22KW	UNIT PRICE: 900 units	Two series
17	Nose heater	Diameter 20.5, length 190	900W	6
18	Heating Rod	Diameter 20.5, length 230	900W	4
19	Suction Drier	Simmer 50 kg + 300 kg		1
20	Eject Gearbox	65	173-16 speed ratio	1
21	Speed reducer	Roll-up curtain	Rv63-20	2
22	Main control box	Temperature Control Section 12,		1
23	Melt blown Mesh chain	0.88 wide, 3.4 meters long		1
24	METERING PUMP	50cc/r		1
25	Yang Ming brand temperature controller			12
26	Screw, barrel	65 screw barrel	ASPECT RATIO: 1:30	1
27	Cord Drum	Diameter 150		1
28	Rewinding drum	Diameter 150		1
29	Frank, pick up			1
30	90-degree runner			1
31	Head screw	12.9
32	High temperature air supply pipe	Six points, 16 mm bore		4
33	Screw discharge screen	Aperture 5.2 mm		1
34	Antistatic tester	50 kv high voltage testing machine	Wuhan Wu Gao Electric Survey Company
35	Three-leaf roots blower		22KW
