10kg 25kg 20kg Automatic Salt Block Large Rotary Tablet Press Machine/Hydraulic Press

Type:
Hydraulic Press
Precision:
Precision
Certification:
CE
Customized:
Customized
Condition:
New
Full Automatic:
High Pressure

Availability:



Inquire Add to Basket

Product Description

Hydraulic tablet press is our main product. More than 100 sets of hydraulic pressmachines are sold each year. Also licking salt block production is one of its popular applications. As the hydraulic tablet press manufacturer, we welcome all visitos to us to see machines.

Fully large automatic hydraulic press machine, widely used to produce salt/mineral blocks , press blocks in range of 1-30kg blocks.

Model	KSTY-200	KSTY-300	KSTY-500	KSTY-600
Max top cylinder pressure	200T	300T	500T	600T
Max bottom cylinder pressure	100T	150T	250T	300T
Max length of upper punch	200mm	300mm	400mm	400mm
Max depth of fill	200mm	250mm	300mm	300mm
Max diameter of down punch	200mm	300mm	400mm	400mm
Capacity(times/minute)	4-6	4-6	3-5	3-5
Motor	15kw	15kw	20kw	30kw
Machine weight	5T	6T	15T	16T

Main models:

We are the developer and maker for KSTY series four-pillar full automatic hydraulic press machines and CHTP series single stroke tablet press machine. Our KSTY series hydraulic press machines, Including KSTY-45/60/100/200/250/300/400/500/600/800/1000/1200. CHTP series single stroke tablet press machines, including CHTP-6T/10T/15T/20T/25T/30T/40T/45T.
We choose suitable model to people according to following:
(1) tablet/block size (2) capacity people want per hour.

Machine introduction:

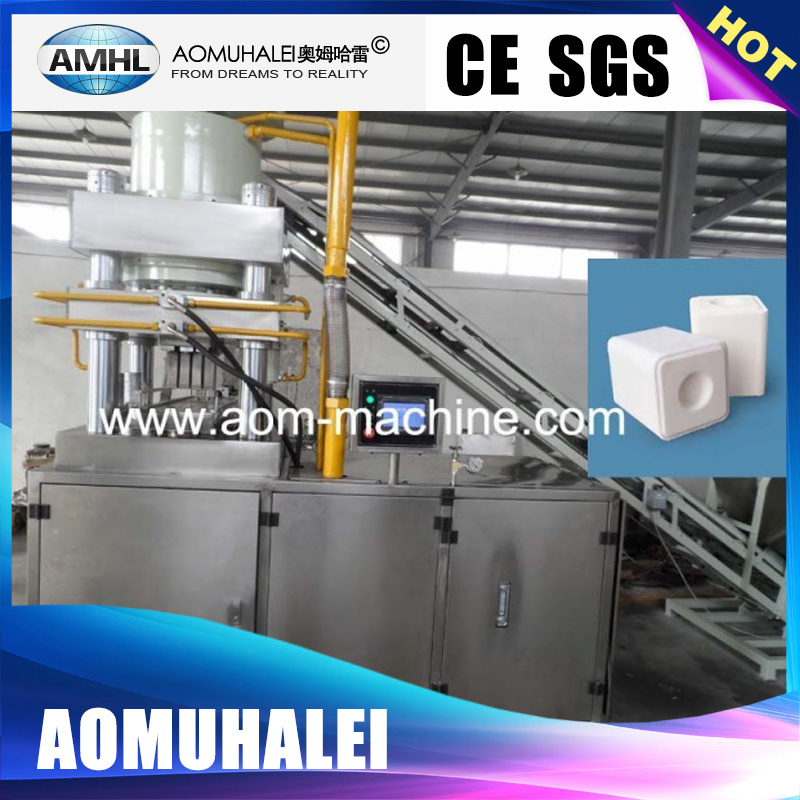

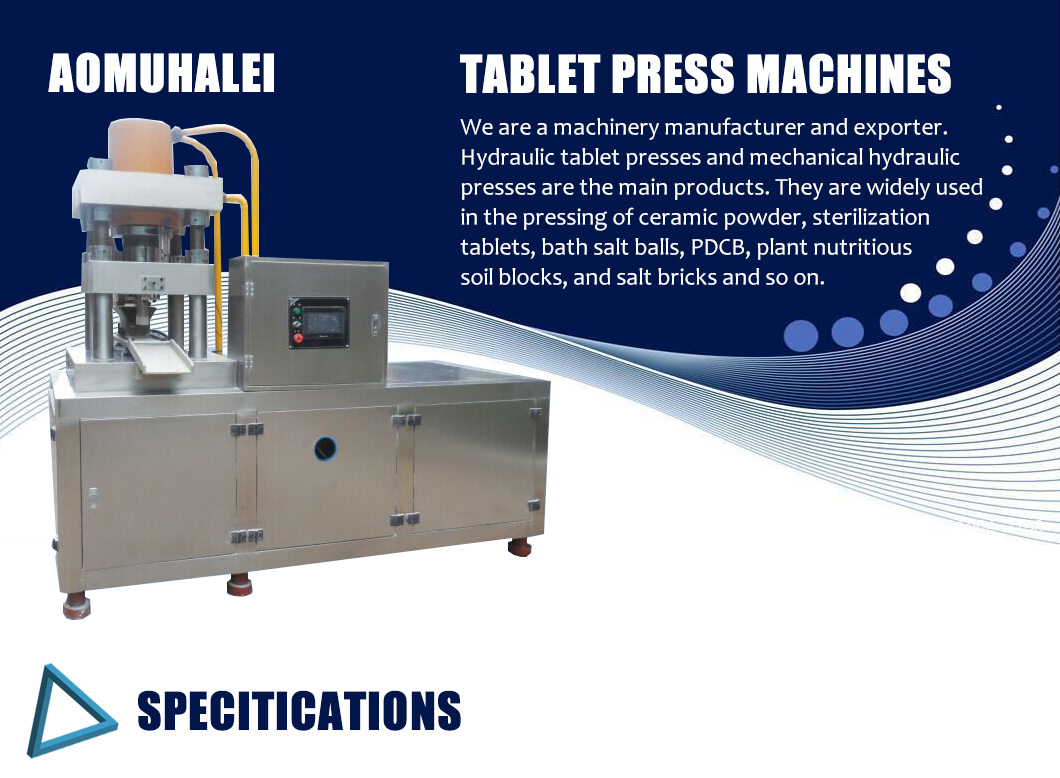

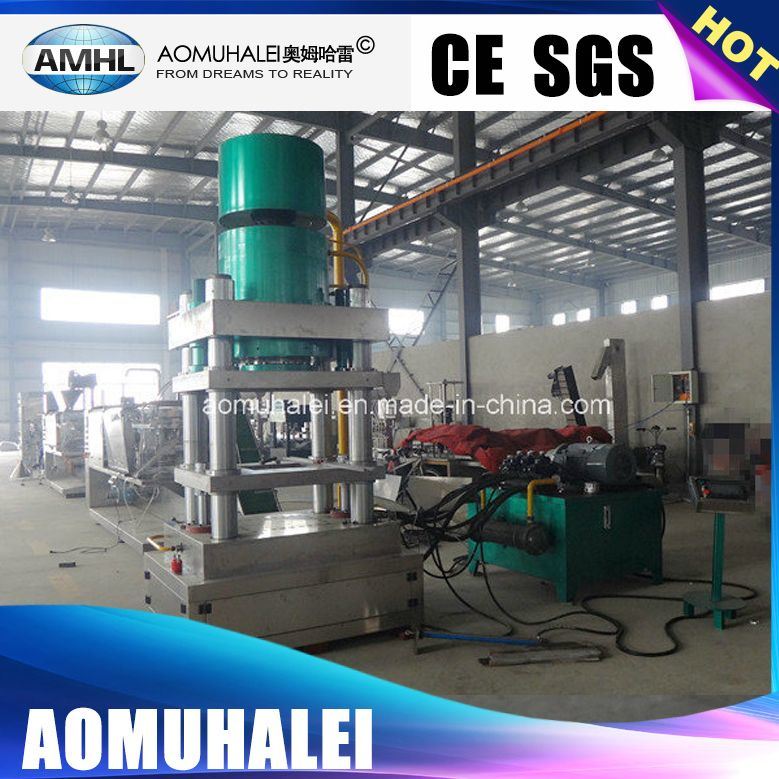

Our KSTY series automatic hydraulic press machine are widely used for pressing any powder into block/tablet, such as metallurgy, ceramics, electromagnetic products, food, disinfectants, mothballs, detergent. It is a kind large hydraulic tablet press of four-pillar structure, and it can achieve the press of Multi-cavity molds, pressure-holding function, which actively increase the production capacity.

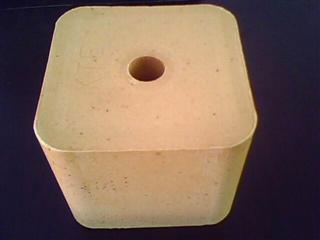

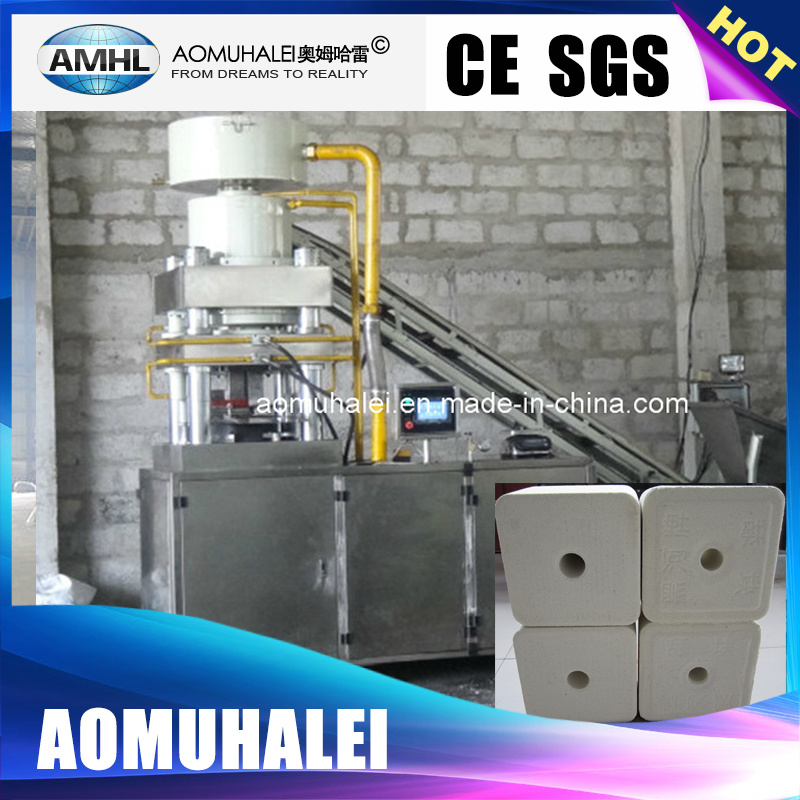

One of its popular applications is used to produce animal licking salt/mineral blocks in 1kg 2kg 5kg 10kg 15kg even in 30kg.
KSTY series automatic hydraulic tablet press's hydraulic system is in SSAN brand from Taiwan, electronic control system uses PLC and HMI(Human Machine Interaction). Running Time can be adjusted according to real situation, and of two operating way, including automatic and semi-automatic.

Automatic hydraulic tablet press is consisted of two big parts, main body and hydraulic station, which are connected through main pipeline and electrical devices.

Features:
1. It has CE certification.
2. it is a Fully Automatic mode large Hydraulic press machine
3. It is made in more stable structure with 4 pillars we design, which is the result of our R&D through many years. It's much heavier than others similar machines. Such structure guarantees that machine works safer and more efficient.
4. Equipped with cooling system by circular cooling water, keep machine in soft environment, protect its life.
5. It is installed with the high quality hydraulic system, purchased from Taiwan.
6. Its key parts are made of titanium material which is anti-rust and anti-corrosion when for corrosive product.
7. Its surface is made of stainless steel which protects machine from outside damage when for corrosive product.
Important Characters:
Some new improvement of our KSTY series hydraulic press machines, which any other suppliers cannot reach, make ours more safety and effectively.
1. It has safety insurance program now, which let machine not to work if people operation and machine running are in wrong way, guarantee people and machines safety.
2. The oil pipe path of our KSTY series machines has been redesigned, which let machine be more energy efficient and Environmental.
3. We use the Double-pump in our KSTY series machines, cost is higher than triple ones. But much better than Triple pump(namely motor combination),
Specification (follow data will have change according to requirement of different people) 10kg 25kg 20kg Automatic Salt Block Large Rotary Tablet Press Machine/Hydraulic Press

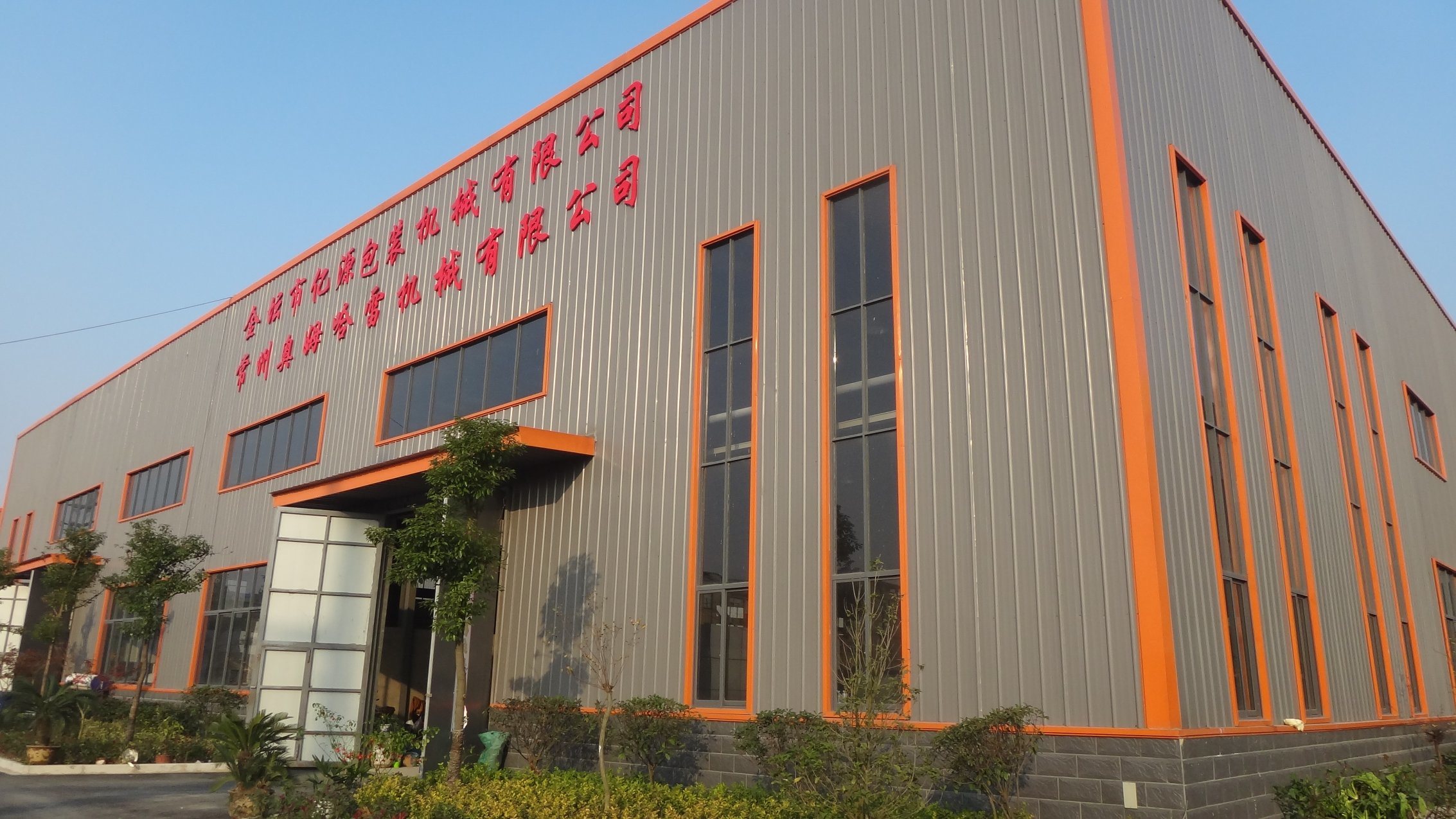

We are the machine maker with more than 20 years experience in China. Located in Changzhou, only 1h hour by G train to us from Shanghai. Also you can arrive us by plane, we have Changzhou Bengniu airport. Please feel free to contact us.We make and supply various kinds of tablet press machines, such as animal licking salt block press machine(1kg 2kg 5kg 10kg even 25kg), chlorine tablet press, 500T~1200T large hydraulic tablet press and so on, which have the characteristics of high stability, high efficiency, low cost, save work, and one-person -multi-equipment. Members of our Leadership are good at machine technology than sales. So we supply the service of customized machine. In usual, most of them are not in clean offices, but working in our workshops, which received much admire especially from foreign clients, not only machine quality and perfect after sales service system.

"Quality is as important as Integrity" is the principle of our Aomuhalei Machinery Co., Ltd. All our members do the job following it.

After more than 20 years' Efforts, we bring in advanced technology of tablet press and filling machine both from domestic and foreign countries, and have done R&D of a new generation of automatic tablet presses and automatic filling machines which are of various types, appealing out look, complete functions and wide range of applications.
